American Made Grills Estate Freedom 30-Inch Built-In Gas Grill
Overview

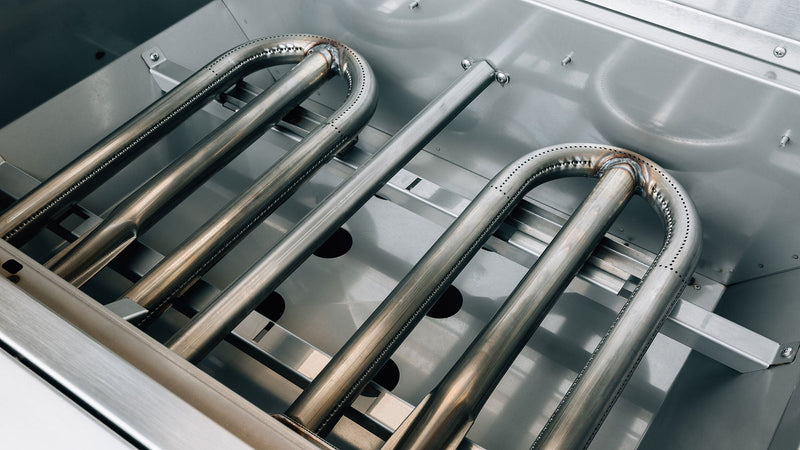

Build your outdoor kitchen around the Estate Freedom 30-inch grill, then add the cooking accessories that suit you. Its stainless steel U-tube burners, interior lighting and spring-assisted hood give you a practical foundation for dinners outdoors.
Make it your own
The Freedom configuration includes the grill, a vinyl grill-head cover and cleaning care kit. Red-brass burner upgrades, rotisserie kit, griddle plate, infrared sear burner and smoker tray are optional and sold separately. The rear rotisserie burner does not mean the motor-and-spit kit is included.
Choose your fuel
Select the factory natural-gas or propane model to match your supply. This is the Estate Freedom configuration with stainless U-tube burners.
Specifications
| Model | EST30-FR-NG / EST30-FR-LP |
|---|---|
| Configuration | Built-in grill head |
| Construction | 304 stainless steel |
| Main burners | 2 stainless steel U-tube burners, 26,000 BTU each |
| Rear burner | 12,000 BTU |
| Total cooking area | 755 sq. in. |
| Included accessories | Grill-head cover and care kit |
| Grill cutout, W × D × H | 28.75 × 21.625 × 10.25 inches |
Plan your installation
For a noncombustible island, the grill-head opening is 28.75 inches wide × 21.625 inches deep × 10.25 inches high. An insulating liner, where required, uses its own larger opening. Island, cart and liner are sold separately. Confirm all clearances and connections in the instructions supplied with your exact grill before construction.
Drawings
2026 manufacturer cutout dimensions (PDF)
Contact us to confirm availability, delivery timing and optional accessories.
Specifications
| Manufacturer | American Made Grills |
|---|---|
| Model | EST30-FR-NG / EST30-FR-LP |
| Installation | Built-in grill head; cart not included |
| Fuel options | Natural gas or propane — choose the version that matches your gas supply |
| Total heat output | 64,000 Total BTUs |
| Burners | 26,000 BTU Stainless U-Tube Burners |
| Total cooking area | 755 sq in. Total Cooking Surface |
| Construction | #304 Stainless Steel Construction |
| Ignition | Flame Thrower Ignition |
| Interior lighting | Interior Halogen Cooking Lights |
| Control lighting | LED Lights Over Each Knob |
| Cooking grates | Heavy-Duty 9mm Cooking Grates |
| Cutout (width × depth × height) | 28-3/4 in. W × 21-5/8 in. D × 10-1/4 in. H |
| Installation planning | Dimensions are for the appliance opening. Insulating liners require their own opening; follow the complete installation manual. |
| Main burners | 2 stainless steel U-tube burners, 26,000 BTU each |
| Rear burner | 12,000 BTU |
| Included accessories | Grill-head cover and care kit |
| Hood | Spring-assisted hood |
| Heat zones | Heat-zone separators |

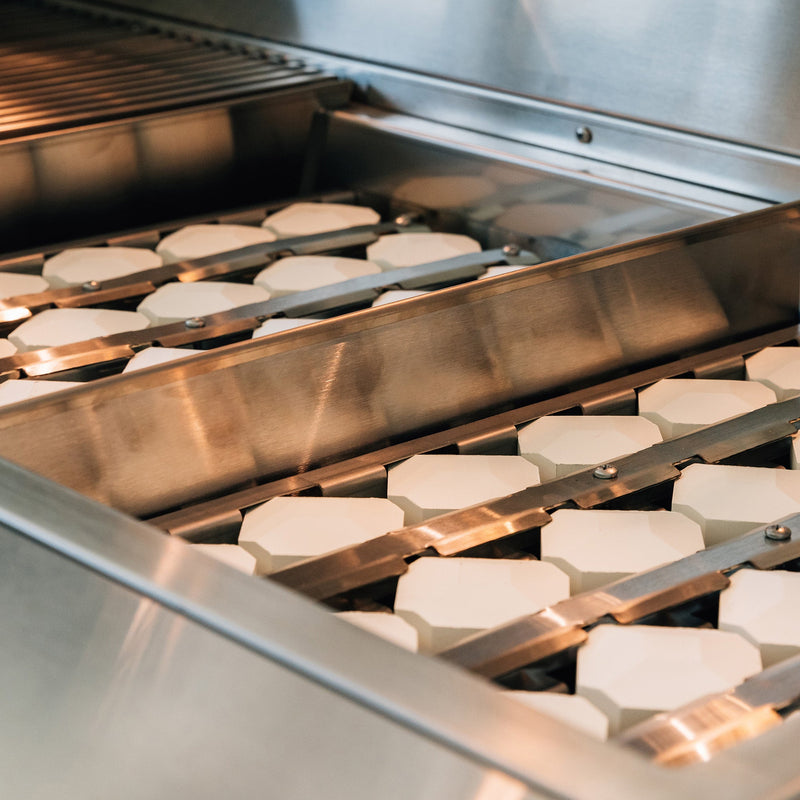

| Heat distribution | Easy-clean briquette system |
| Grill-head cover | Included |
Manufacturer Documents
Official documents from American Made Grills. These are the drawings to check before you frame the opening — they are the manufacturer's current revision, hosted on their own site.
Documents are published by the manufacturer and can be revised without notice. If anything in them conflicts with what you see here, the manufacturer's document is the one that governs the install.
Shipping & Returns
Contact us to confirm availability and delivery timing.
Review our shipping policy and return policy before ordering.
Warranty
Warranty coverage and terms vary by manufacturer and component. Refer to the manufacturer documents for this model.
Contact us with your order number if you need help with a warranty claim.
