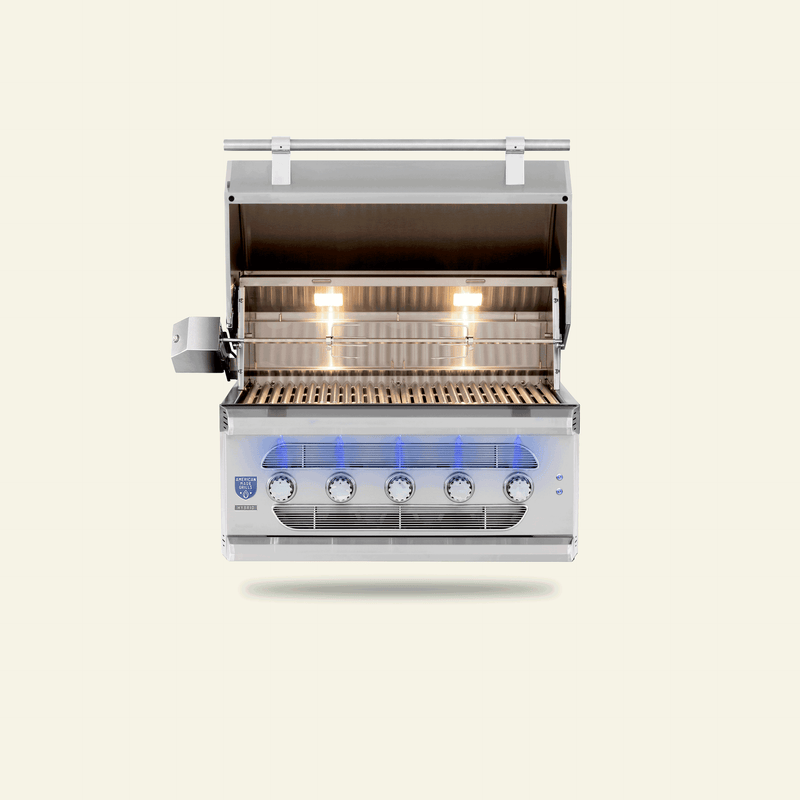

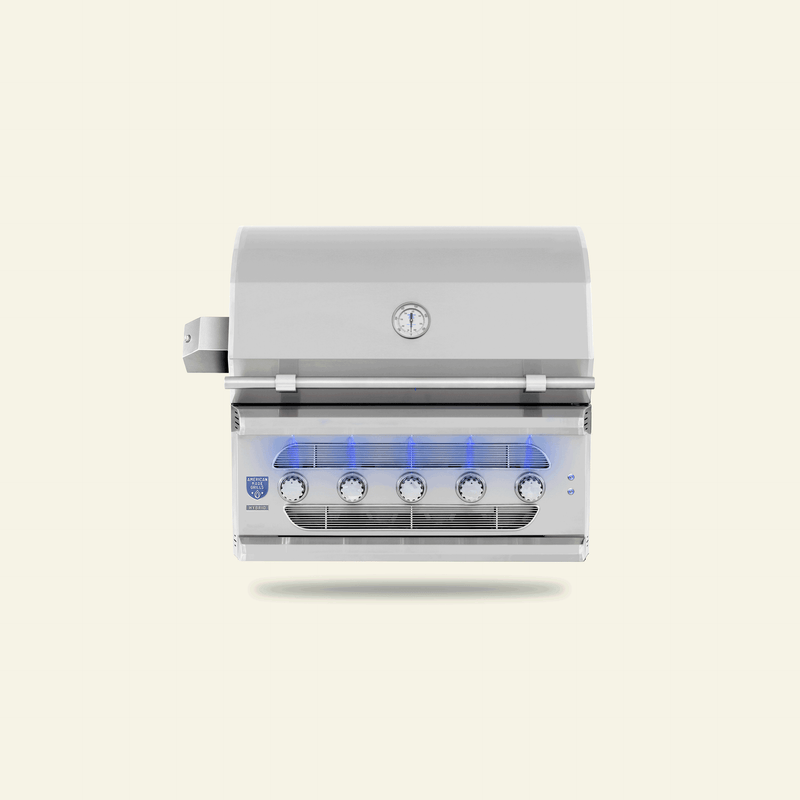

American Made Grills Muscle 36" Built-In Hybrid Grill
Overview
The American Made Grills Muscle 36" Built-In Hybrid Grill is a heavy-duty, multi-fuel powerhouse inspired by the aggressive front styling of the classic American muscle car. Burn natural gas, wood, lump coal, charcoal briquettes, or pellets—separately or all at once—for unmatched flavor and total command over every cook.
Forged from #304 stainless steel with five 22,000 BTU tubular burners delivering 110,000 BTUs, reversible 9-gauge V-shaped cast cooking grates, a patented multi-fuel tray system, halogen interior lighting, and a battery-free dual-spark flame thrower ignition, the Muscle 36 is built, factory-tested, and serviced in the USA and backed by a Gold Standard Lifetime Warranty.
Specifications
- Cooking Width: 36 inches
- Total Cooking Surface: 1,072 sq. in.

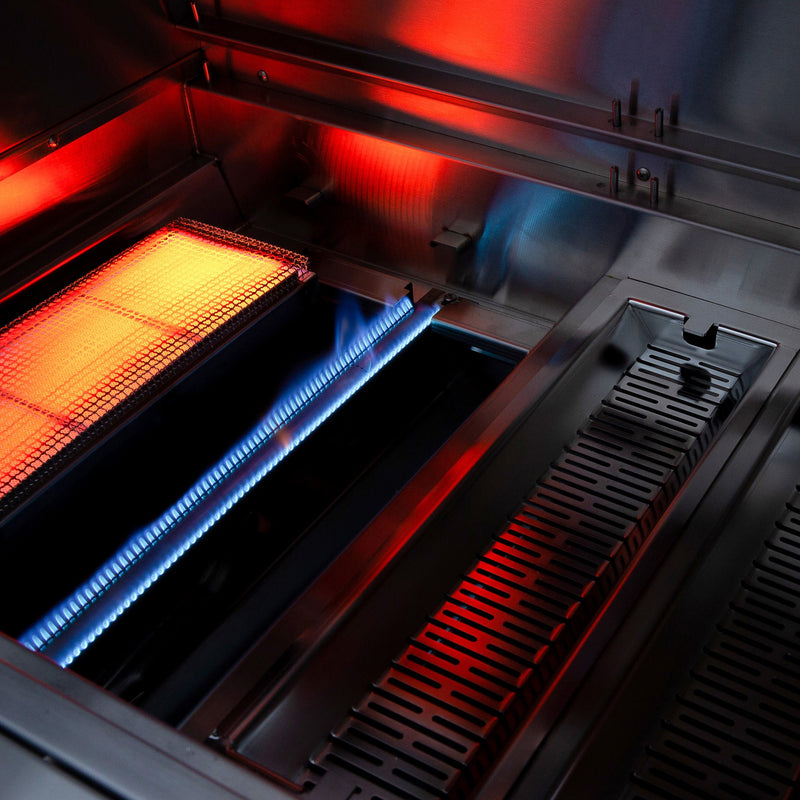

- Main Burners: Five 22,000 BTU #304 stainless tubular burners
- Total Output: 110,000 BTU
- Fuel System: Hybrid multi-fuel — natural gas, propane, wood, lump coal, charcoal, pellets
- Ignition: Dual-spark solid brass flame thrower (battery-free, no electricity required)
- Construction: #304 stainless steel; 16-gauge double-lined spring-assisted hood; 14-gauge burners
- Cooking Grates: Reversible 9-gauge V-shaped cast stainless steel

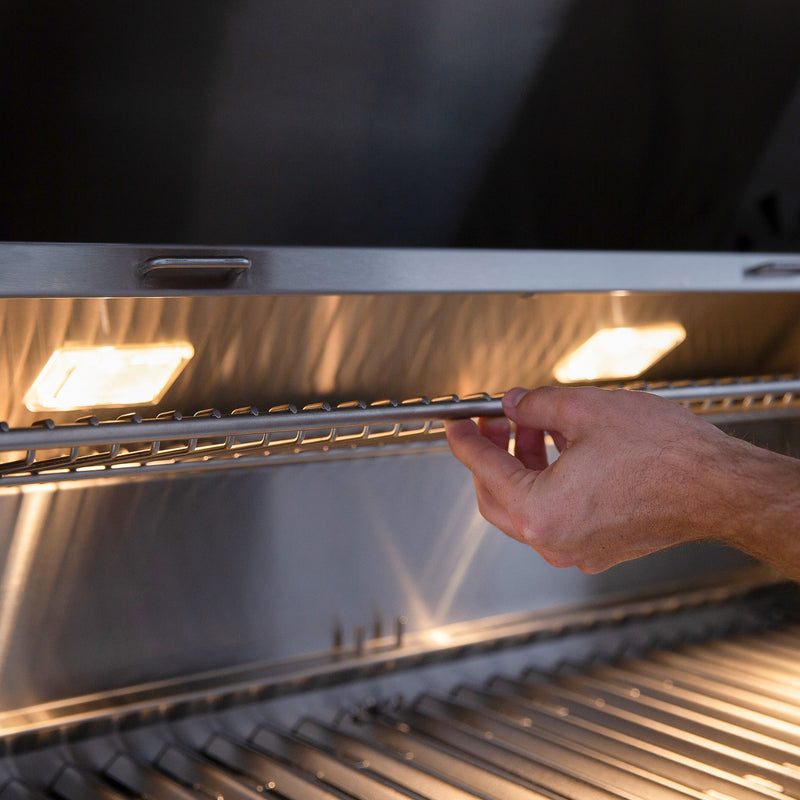

- Lighting: Halogen interior cooking lights + LED knob lights
- Overall Dimensions: 37"W x 33.25"D x 33"H
- Built-In Cutout: 36 5/8"W x 24 3/4"D x 10 1/4"H
- Certification: ANSI Z21.58 / CGA 1.6 tested
- Warranty: Gold Standard Lifetime (100% non-prorated replacement parts)
- Made in USA: Built, factory tested, and serviced in Long Island, NY
ExceptionalFire is an authorized American Made Grills dealer.
Specifications
| Manufacturer | American Made Grills |
|---|---|
| Model | MUS36-LP / MUS36-NG |
| Installation | Built-in grill head; cart not included |
| Fuel options | Natural gas or propane — choose the version that matches your gas supply |
| Burners | 22,000 BTU Main Burners |
| Total cooking area | 1,072 sq in. Total Cooking Surface |
| Construction | #304 Stainless Steel Construction |
| Ignition | Flame Thrower Ignition |
| Interior lighting | Interior Halogen Cooking Lights |
| Control lighting | LED Lights Over Each Knob |
| Cutout (width × depth × height) | 35 in. W × 25 in. D × 15 in. H |
| Installation planning | Dimensions are for the appliance opening. Insulating liners require their own opening; follow the complete installation manual. |
| Hood | Spring-assisted hood |
| Heat zones | Heat-zone separators |
Manufacturer Documents
Official documents from American Made Grills. These are the drawings to check before you frame the opening — they are the manufacturer's current revision, hosted on their own site.
Documents are published by the manufacturer and can be revised without notice. If anything in them conflicts with what you see here, the manufacturer's document is the one that governs the install.
