Bromic Platinum Electric Low Clearance Ceiling Recess Kit
Overview

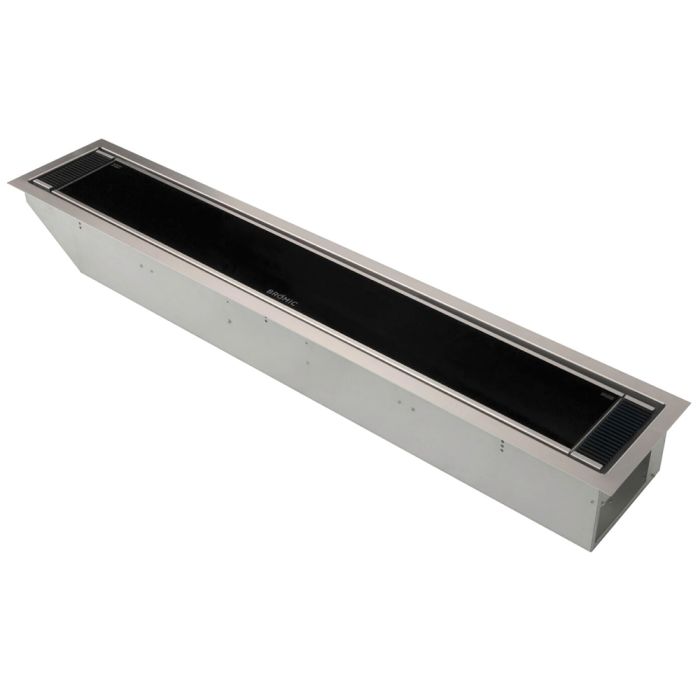

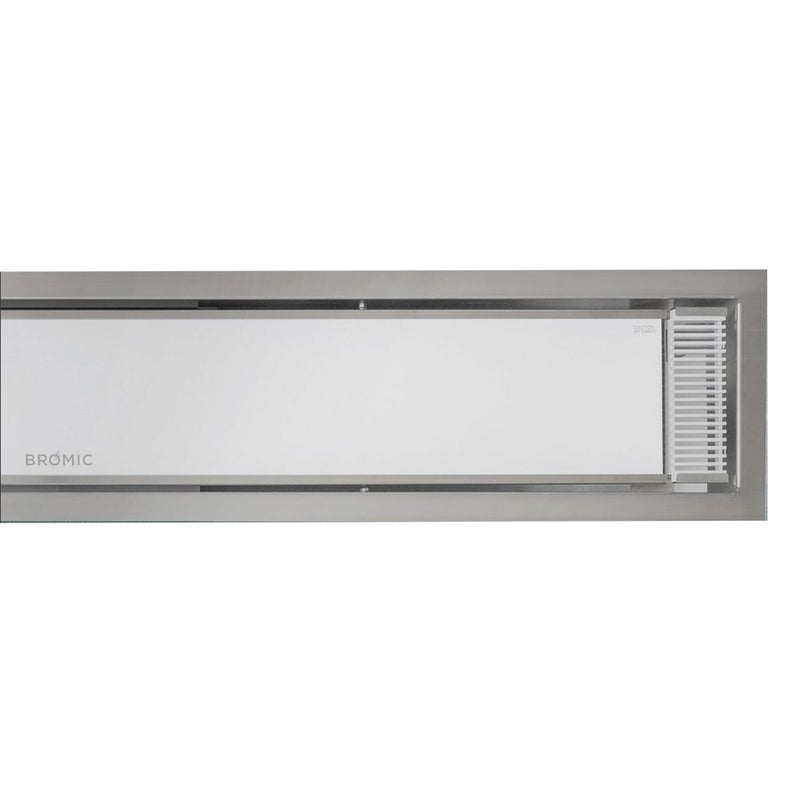

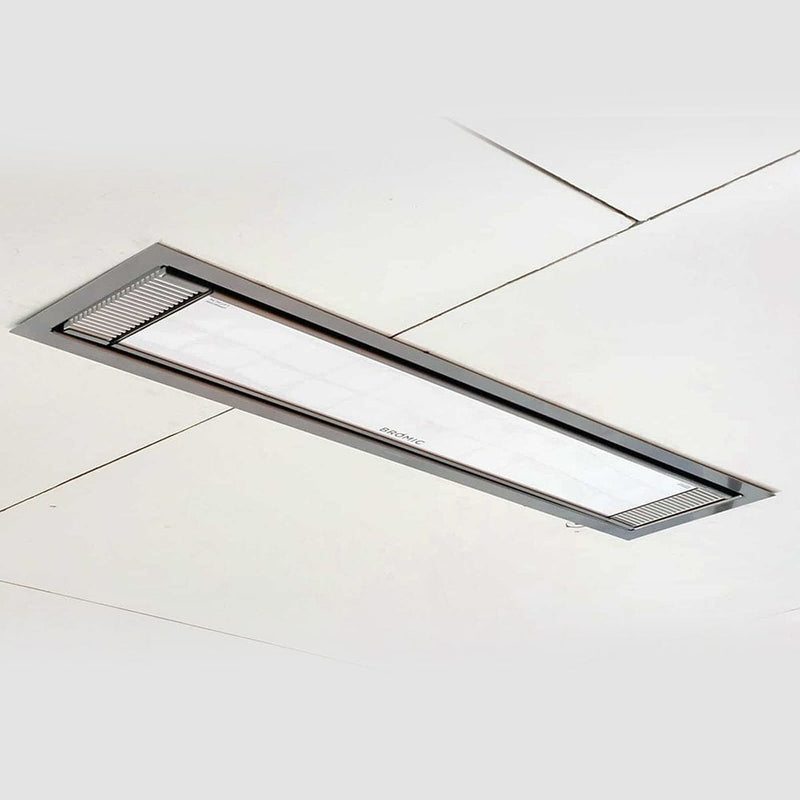

Recess your Bromic Platinum Smart-Heat Electric heater into the ceiling for a flush, architectural finish that all but disappears when the heater is off. The Low Clearance Ceiling Recess Kit removes the heater from your line of sight while delivering the same instant infrared warmth, making it the preferred choice for designers and luxury outdoor living spaces.
UL Certified and built from corrosion-resistant 304 stainless steel, the kit fits within standard ceiling joists and includes an integrated cooling fan that allows installation in cavities as shallow as 7.1 inches. Suitable for both new construction and retrofit applications. Choose the kit that matches your Platinum Electric heater wattage.
Specifications
- Type: Low Clearance Ceiling Recess Kit (flush ceiling mount)
- Compatible Heaters: Bromic Platinum / Platinum Marine Smart-Heat Electric (2300W, 3400W, 4500W)
- Minimum Cavity Depth: 7.1 in (180 mm)
- Cutout Width: 9.4 in (2300W & 3400W); 12.4 in (4500W)
- Cutout Height: 7.1 in
- Cutout Length: 39.2 in (2300W); 56.3 in (3400W); 61.0 in (4500W)
- Material: 304 Grade Stainless Steel with high-temperature corrosion-resistant coating
- Ventilation: Integrated cooling fan (requires dedicated power supply, independent of heater)
- Certification: UL Certified
- Installation: New build or retrofit; fits standard ceiling joists
- Heater Included: No - heater sold separately
- Warranty: 1 year manufacturer warranty
ExceptionalFire is an authorized Bromic dealer.
Specifications
| Vendor | Bromic |
|---|---|
| Compatible Heater | 2300W Platinum Electric, 3400W Platinum Electric, 4500W Platinum Electric |
| Type | Patio Heaters |
| SKU | BH3623009-1 |
