The details
Product details
OverviewProduct details and key features

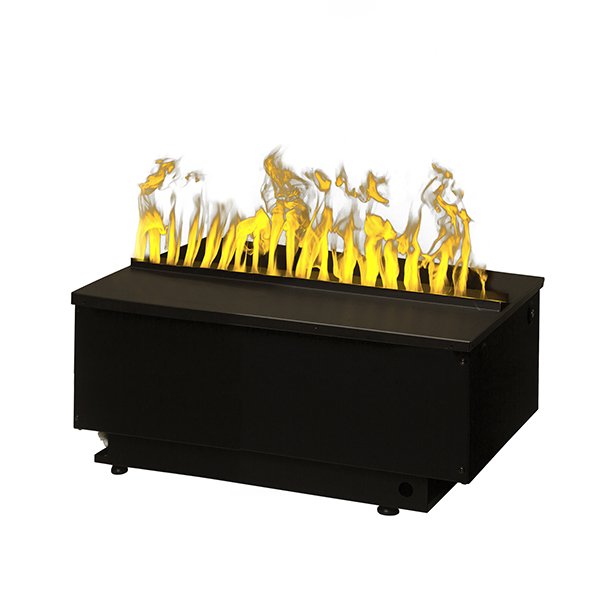

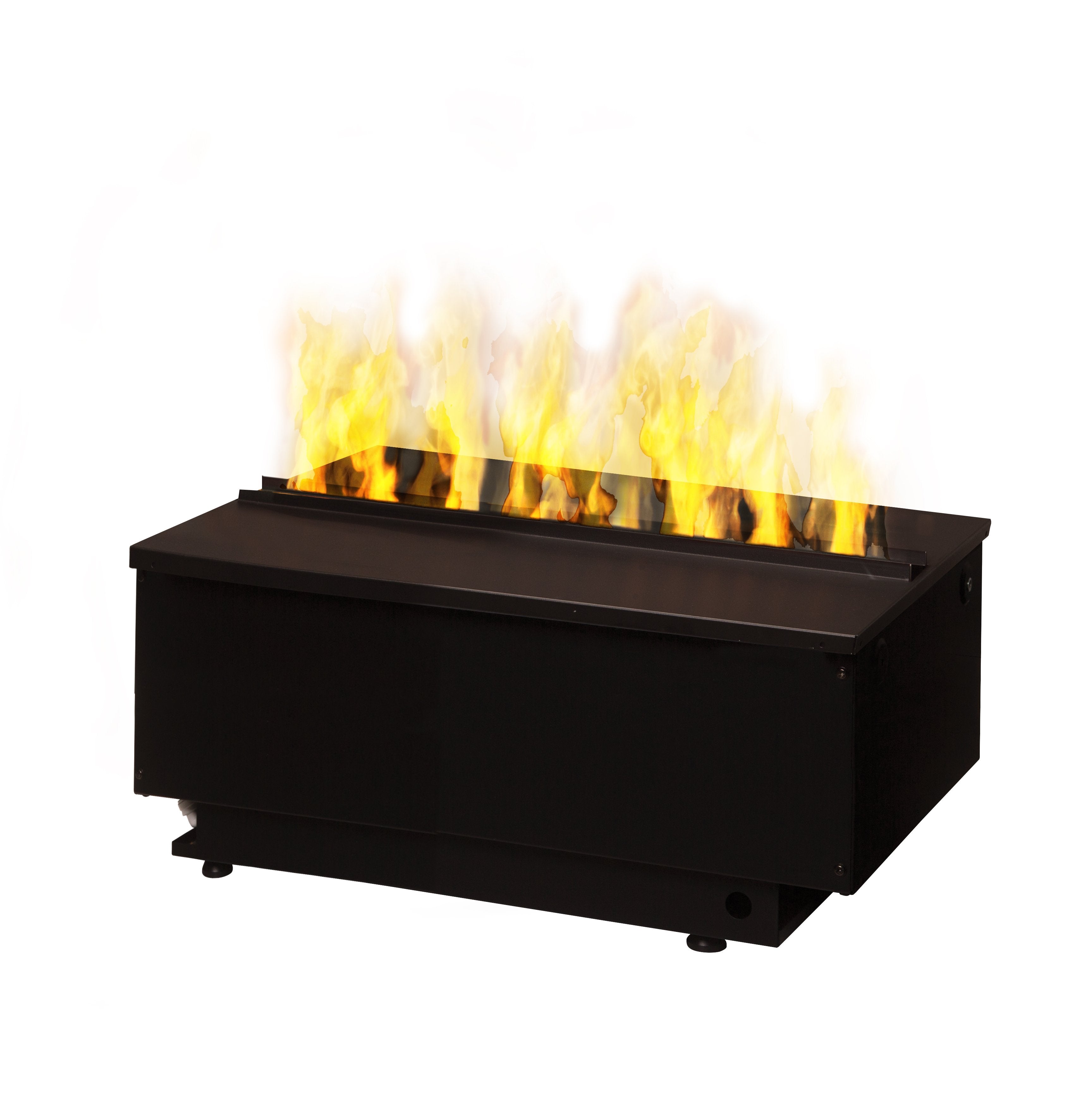

The Dimplex 20'' Optimyst® Cassette Vapor Electric Fireplace - Model CDFI500-PRO redefines the concept of modern fireplaces with its revolutionary flame technology. Unlike traditional fireplaces, this cassette uses ultrasonic technology to create mist that mimics realistic flames and smoke. The mist is cool to the touch, allowing for safer installation in a variety of spaces, including open concepts or three-sided designs. With no need for venting, gas lines, or hot glass, this fireplace offers ultimate flexibility for a range of custom designs. It's perfect for adding a dramatic fire feature to any room or setting.
This Optimyst® Electric Fireplace can be combined with other cassettes to create larger, linear installations, making it versatile for both residential and commercial projects. It also includes an option for a continuous water supply (with a separate kit), allowing for uninterrupted operation without frequent refills. With its modern, modular design, the Optimyst® is a true innovation in electric fireplaces.
Key Features:
⦿ Ultrasonic flame technology creates mist that looks like real flames and smoke.
⦿ Modular design allows for combining multiple cassettes to achieve the desired length.
⦿ No venting or gas lines required for flexible installation in various spaces.
⦿ Cool-touch flames offer enhanced safety, making it child and pet-friendly.
⦿ Continuous water supply option with additional plumbed water kit for seamless operation.
⦿ Compact and lightweight design for easy integration into custom projects.
⦿ Automatic shutoff for added safety and peace of mind.
Documents and Instructions:
⦿ Product Manual
⦿ Product Specifications
The Dimplex 20'' Optimyst® Cassette Vapor Electric Fireplace offers a safe, customizable, and innovative fireplace experience with mist-based flame technology. It allows endless design possibilities without the constraints of traditional gas or electric fireplaces.
Delivery information · Returns and order changes
SpecificationsDimensions, materials and product information
| Model Number | CDFI500-PRO |
|---|---|
| Dimplex Order Number | 2113053 (sell sheet); X-CDFI500-PRO (3-part spec order no.) |
| Regulatory Model Number | 6909660400 |
| Description | Optimyst Pro Cassette, 20 inch water vapor flame effect |

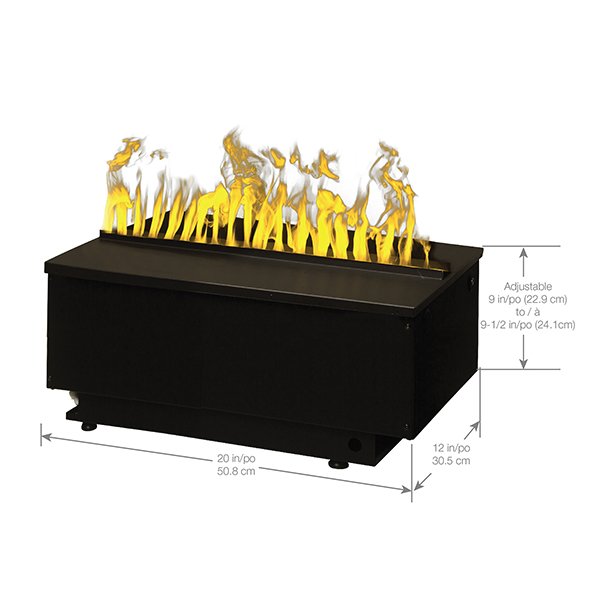

| Product Dimensions With Media Plate In | 20-1/8 W x 9-1/2 H x 12 D |
| Product Dimensions With Media Plate Cm | 50.8 W x 24.1 H x 30.5 D |
| Product Dimensions With Logset In | 20-1/8 W x 15-1/4 H x 14 D |
| Product Dimensions With Logset Cm | 50.8 W x 38.7 H x 35.5 D |
| Framing Dimensions With Media Plate In | 20-3/8 W x 9-1/2 H x 12-1/4 D |
| Framing Dimensions With Logset In | 20-3/8 W x 9-1/2 H x 14-1/4 D |
| Height Adjustable | Adjustable from 9 in (22.9 cm) to 9-1/2 in (24.1 cm) |
| Volts | 120 V |
| Watts | 230 W |
| Amps | 1.9 A |
| Heat Output | None - flame only, no heat (optional heater accessory CDFI-TMHEAT available) |
| Venting | Non-venting |
| Minimum Air Inlet | 40 in2 (258 cm2), any shape or location |
| Warranty | 2-year limited warranty on electrical components |
| Available Widths | 20 inch |
| Listings | UL 2021, CSA C22.2 No. 46 |
| Compatible Accessories Per Dimplex | CDFIPLUMB-KIT - plumb kit for continuous water supply, CDFI-PLUGKIT - plug kit, X-00275 - air intake grille, CDFI-TMHEAT - Optimyst direct-wire heater accessory, CDFILOG / CDFILOG-KIT - moulded log set |
| Manufacturer | Glen Dimplex Americas, 1367 Industrial Road, Cambridge ON N3H 4W3, 1-888-346-7539 |
Manufacturer documentsManuals and reference information
Documents from Dimplex. Review them with your installer and confirm they cover your exact model and revision before using the specifications.
- Optimyst Cassette - Sell Sheet (EN)PDF · www.dimplex.com
- Optimyst Cassette - CDFI500-PRO - Technical Specifications (EN)PDF · www.dimplex.com
- Optimyst Cassette - Owners Manual (EN / FR / ES)PDF · www.dimplex.com
- Optimyst Cassette - Service Manual (EN)PDF · www.dimplex.com
- 3 Part Spec Sheet - CDFI500-PRO (EN)PDF · www.dimplex.com
- Optimyst Differences - CDFI500-PRO and CDFI500-PRO-RGB (EN)PDF · www.dimplex.com
Manufacturers may revise their documents. If a document conflicts with this listing or another document, ask our team and your installer to confirm the correct model-specific instructions before installation.
