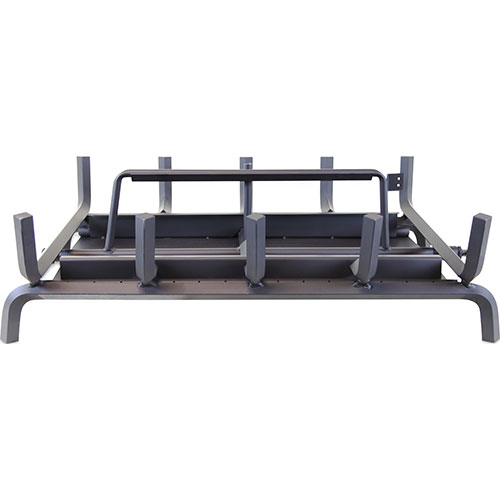

Grand Canyon 36" Jumbo See-Through Vented Burner - Natural Gas
Overview
The Grand Canyon 36" Jumbo See-Through Burner is a double-sided, vented gas burner system engineered to deliver a towering, full-bodied flame on both viewing sides of an open-hearth or see-through fireplace. Built on a fully welded 304 stainless steel chassis with heavy 1" bar stock and a sandless design, it surrounds Grand Canyon's Jumbo log sets with an elevated rear burner for dramatic, unmatched flame height and serious radiant heat.
This is a Natural Gas burner system rated at 150,000 BTU. Gas can be plumbed in from the left or right side, and concealed pilot mounting brackets keep the control hardware hidden for a clean, realistic fire. Logs are not included, allowing you to pair the burner with the Grand Canyon Jumbo log set of your choice.
Specifications
- Model: JUMBOBRNR-ST36
- Size: 36" (front width)
- Style: See-Through (double-sided)
- BTU Output: 150,000 BTU
- Fuel Type: Natural Gas (convertible to Liquid Propane with conversion kit)
- Material: Fully welded 304 stainless steel chassis, 1" bar stock
- Venting: Vented - indoor use only (requires damper clamp)
- Piping: 3/4" gas piping, gas inlet left or right
- Pilot: Concealed pilot mounting brackets
- Includes: Metal bar stock and burner pipes, lava rock, fittings, flex line, embers damper clamp
- Logs: Not included (sold separately)
- Certification: ANSI Certified with control systems
- Warranty: Lifetime Warranty when installed indoors
- Made in USA: Yes - manufactured by Grand Canyon Gas Logs, Phoenix, AZ
ExceptionalFire is an authorized Grand Canyon dealer.
Specifications
| Vendor | Grand Canyon |
|---|---|
| Title | Default Title |
| Type | Gas Logs |
| SKU | JUMBOBRNR-ST36 |
Shipping & Returns
Free shipping across the contiguous US. Ships in 3-10 days from our facility.
All shipments are insured and tracked. You'll receive a tracking number via email within 24 hours of dispatch.
30-day returns on stock items in original condition. Free return shipping if the item arrives damaged or doesn't match the listing.
Warranty
This product is backed by our 5-year limited warranty against manufacturing defects in materials and workmanship.
Warranty covers structural integrity, finish, and hardware. Normal wear, damage from improper installation, and modifications void coverage.
To file a claim, email warranty@exceptionalfire.com with your order number and photos of the issue.
What Our Customers Say
Top It Off With a Mantel
SaleClassic Non-Combustible Concrete Mantel Shelves | Modern Fireplace Upgrade
SaleNon-Combustible Concrete Mantel Shelves By Design Specialties - Banded
SaleStandard Non-Combustible Steel Mantel Shelves | 12 Finishes
SaleModern Non-Combustible Concrete Mantel Shelves | Design Specialties
SaleFlat Sawn Non-Combustible Concrete Mantel Shelf Pale Honey Finish
Tobacco Barn Non-Combustible Concrete Mantel Shelf Pale Honey Finish
SaleFlat Sawn Non-Combustible Concrete Mantel Shelf Maduro Finish
SaleChiseled Concrete Mantel Shelves | Design Specialties Non-Combustible
Grist Mill Non-Combustible Concrete Mantel Shelf Pale Honey Finish
Custom Metal Floating Mantel Shelf | Non-Combustible White Oak
Custom Metal Floating Mantel Shelf: Non-Combustible, Wood Grain Walnut, Any Size
SaleNew River Weathered Beam Non-Combustible Mantel Shelf FIELDSTONE Finish
Ardmore Flat Black Masonry Fireplace Door | Standard
Rainbow Fireplace Glass Doors | Custom Prefab Fit
Stiletto Masonry & Prefab Fireplace Glass Doors | Custom Made
Brookfield - Masonry & Prefab Fireplace Glass Doors | Custom
Frequently asked questions
Vented vs. ventless gas logs — which is right for me?
Vented gas logs require a working chimney/flue (open damper during use). They produce a more realistic, taller flame and expel combustion byproducts outdoors. Ventless (vent-free) gas logs burn cleaner so they don't require a flue — but they release combustion moisture and trace byproducts into the room. Vented = more realistic look + fully outdoor exhaust. Ventless = higher heat efficiency + flexible install but check local codes (some jurisdictions restrict ventless).
Are ventless gas logs safe?
Ventless gas logs sold in the US must include an oxygen depletion sensor (ODS) by design — the unit shuts off automatically if room oxygen drops below safe levels. Most also include built-in carbon monoxide protections. To use safely: install a CO detector in the room, follow the BTU sizing limits for your room volume, crack a window if running for extended periods, and don't run continuously for more than the manufacturer's stated maximum (typically 4 hours). Some states and municipalities do not permit ventless installation — check your local code.
Can I use gas logs in my wood-burning fireplace?
Yes — vented gas logs are designed to drop into a working masonry or pre-fab wood-burning fireplace. The chimney/flue must be inspected and verified working (open damper during use). You'll also need a gas line run to the firebox if one isn't already there. Always have a licensed gas plumber install the line and have a hearth professional install and test the burner.
How do I light gas logs?
Most modern gas log sets use a millivolt valve with a wall switch or remote, or a match-light system where you ignite a pilot manually with a match. Check your specific set's manual. For first lighting after install, follow the manufacturer's burn-in procedure (typically 4–6 hours total of staged burns) to cure the logs and burner coatings before regular use.
Free shipping and warranty?
Free freight shipping on all orders, contiguous US. Most gas log sets carry a 5-year warranty on the burner and a limited lifetime warranty on the ceramic logs against defects (warranty terms vary by manufacturer — full details on each product page). 30-day return window on unused, uninstalled gas log sets.
