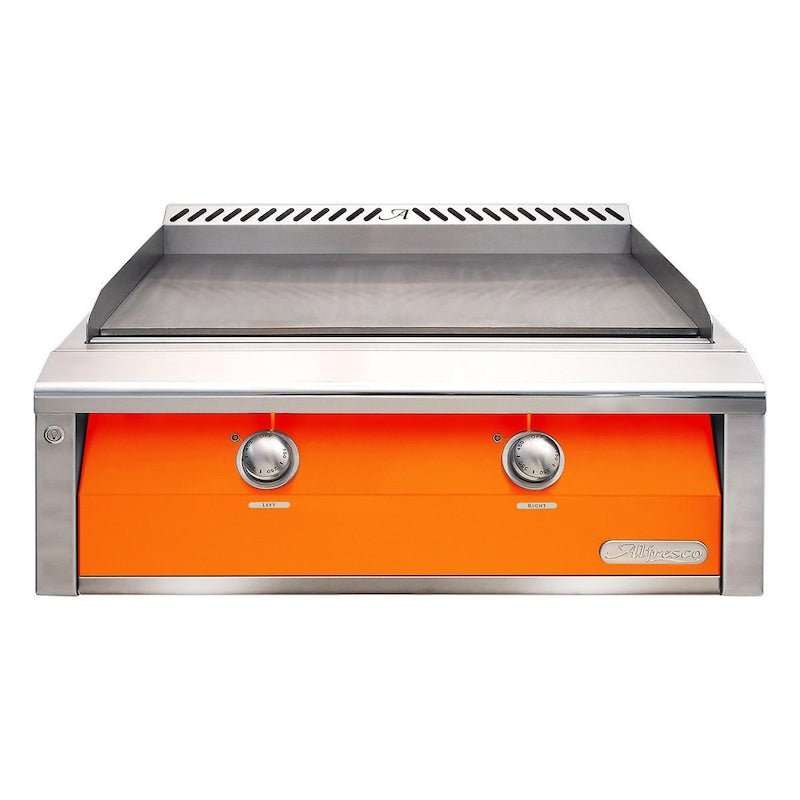

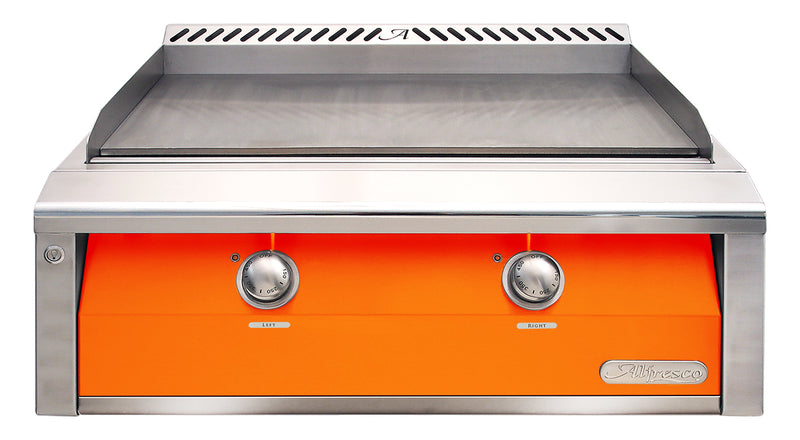

Alfresco 30-Inch Built-In Natural Gas Griddle — Luminous Orange Gloss
Overview
Bring breakfast, sizzling vegetables and smash burgers to your outdoor kitchen. The Alfresco 30-inch built-in griddle gives you a flat cooking surface and two separately controlled zones, so you can prepare different foods side by side.
A finish that fits your outdoor kitchen
The Luminous Orange Gloss front panel adds color while the body and removable cover retain their stainless steel finish. This listing is the factory natural gas model, AXE-30GT-NG-S2005.
Made for more than burgers
- The 3/8-inch solid steel cooking plate provides a continuous surface for foods that would fall through grill grates.
- Separate temperature controls let you cook different foods at once.
- Electric ignition and illuminated front controls make operation straightforward.
- The removable stainless steel cover protects the cooking surface between uses; let the griddle cool before replacing it.
What’s included
Built-in griddle head and stainless steel cover. The outdoor island, cart, insulating jacket and gas supply equipment are separate unless specifically listed.
Specifications
| Model | AXE-30GT-NG-S2005 |
|---|---|
| Configuration | Built-in griddle head; cart and island sold separately |
| Fuel type | Natural Gas |
| Finish | Luminous Orange Gloss front panel with stainless steel body |
| Cooking surface | 3/8-inch solid steel plate |
| Temperature control | Two independently controlled cooking zones |
| Cooking area | 468 sq. in. (27.5 × 17 inches) |
| Electrical supply | 115 VAC, 50/60 Hz |
| Included cover | Stainless steel griddle cover |
| Cutout, W × D × H | 28.5 × 23 × 10.25 inches; see model drawing for notches and clearances |
Plan your installation
This natural gas model must match your gas supply. It requires an electrical connection. The manufacturer’s AXE-30GT drawing specifies a 28.5-inch wide × 23-inch deep × 10.25-inch high opening in a noncombustible enclosure. Follow the drawing for front notches and the care manual for clearances, ventilation and connections. An installation requiring an insulating jacket uses the jacket’s own opening dimensions.
Manuals & drawings
Contact us to confirm availability, delivery timing and compatible accessories.
Specifications
| Model | AXE-30GT-NG-S2005 |
|---|---|
| Configuration | Built-in griddle head; cart and island sold separately |
| Fuel type | Natural Gas |
| Finish | Luminous Orange Gloss front panel with stainless steel body |
| Cooking surface | 3/8-inch solid steel plate |
| Temperature control | Two independently controlled cooking zones |
| Cooking area | 468 sq. in. (27.5 × 17 inches) |
| Electrical supply | 115 VAC, 50/60 Hz |
| Included cover | Stainless steel griddle cover |
| Cutout, W × D × H | 28.5 × 23 × 10.25 inches; see model drawing for notches and clearances |
Manufacturer Documents
Official documents from Alfresco. These are the drawings to check before you frame the opening — they are the manufacturer's current revision, hosted on their own site.
Documents are published by the manufacturer and can be revised without notice. If anything in them conflicts with what you see here, the manufacturer's document is the one that governs the install.
Shipping & Returns
Contact us to confirm availability and delivery timing.
Review our shipping policy and return policy before ordering.
Warranty
Warranty coverage and terms vary by manufacturer and component. Refer to the manufacturer documents for this model.
Contact us with your order number if you need help with a warranty claim.
