Alfresco ALXE 42-Inch Built-In Natural Gas Grill — Traffic Yellow Gloss
Overview
Build a cooking station around the meals you love to share. The Alfresco ALXE 42-inch pairs 770 square inches of grilling area with an integrated rotisserie and a dedicated smoker system.
More ways to cook outdoors
- Conventional main burners give you a familiar gas-grilling setup for everyday meals.

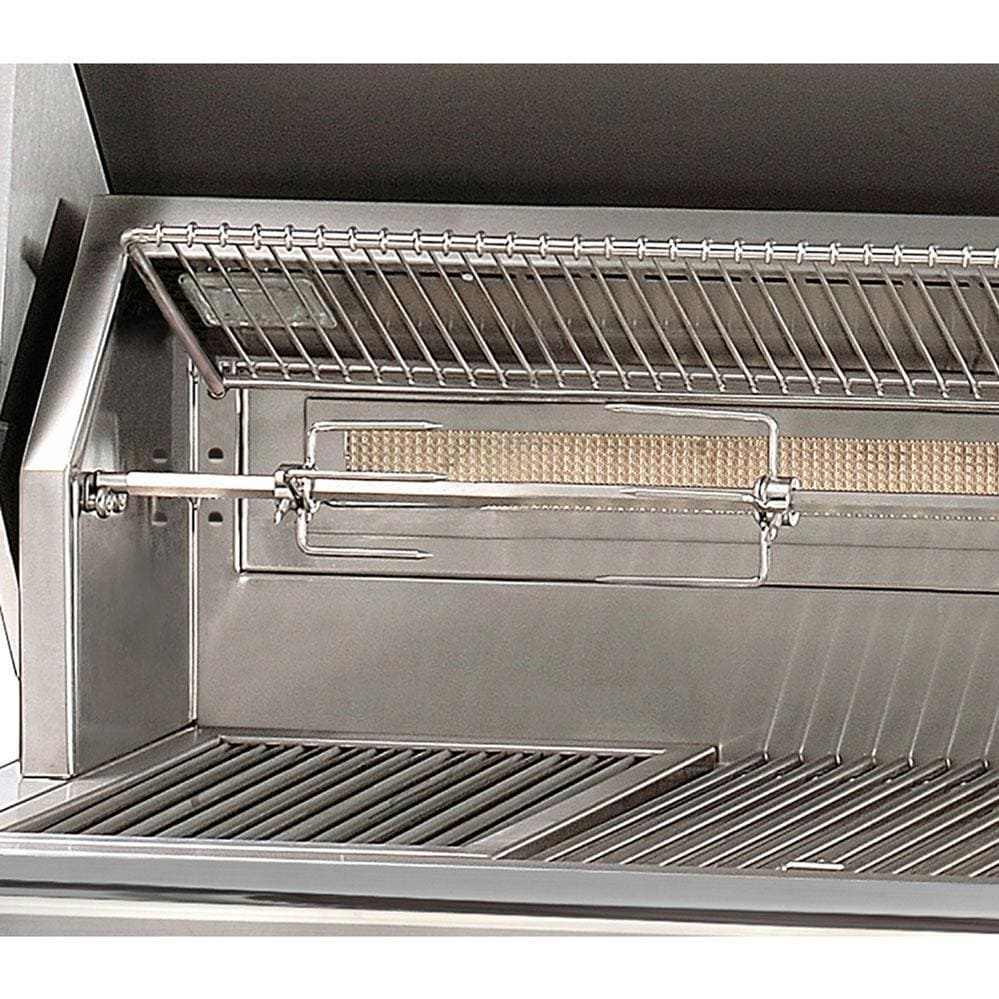

- The integrated rotisserie adds another way to prepare larger cuts and poultry.

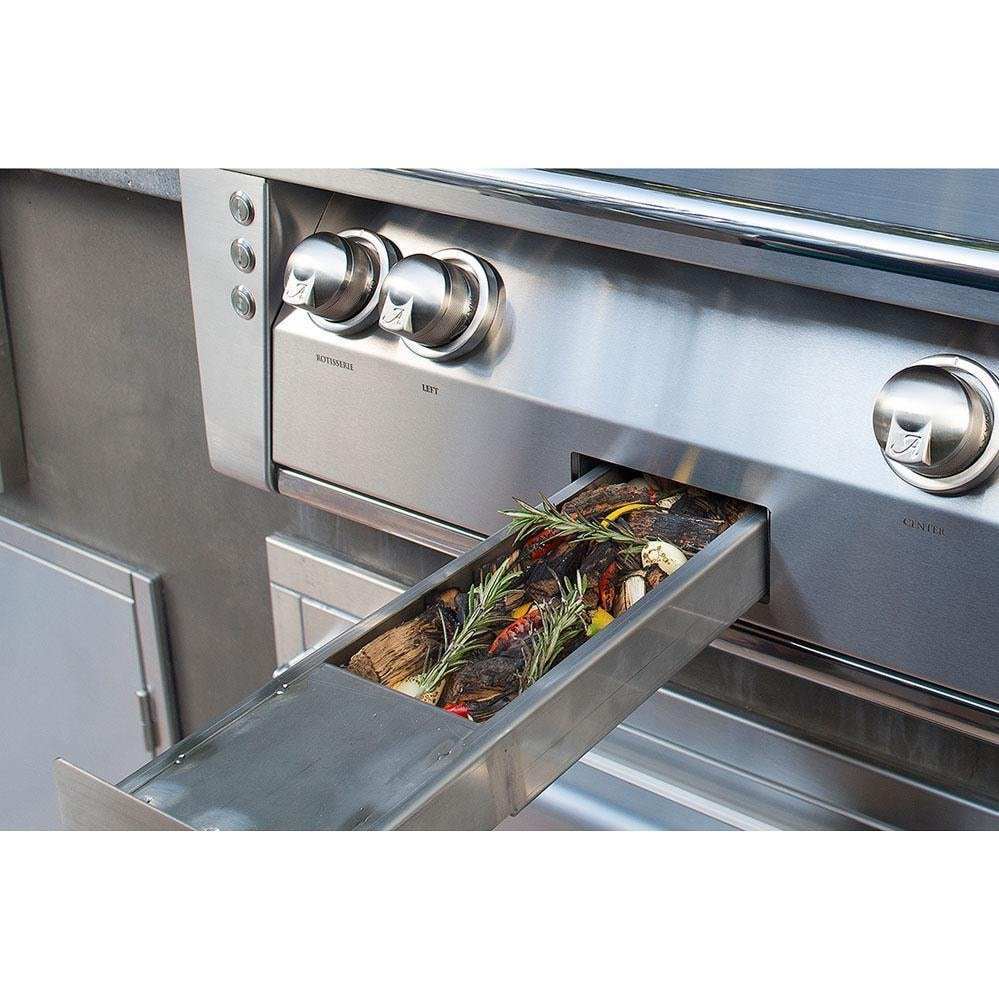

- A dedicated smoker system lets you add smoke to your cooking.
- Two halogen work lights illuminate the cooking area, and a three-position warming rack helps organize food as you cook.
Your finish and fuel

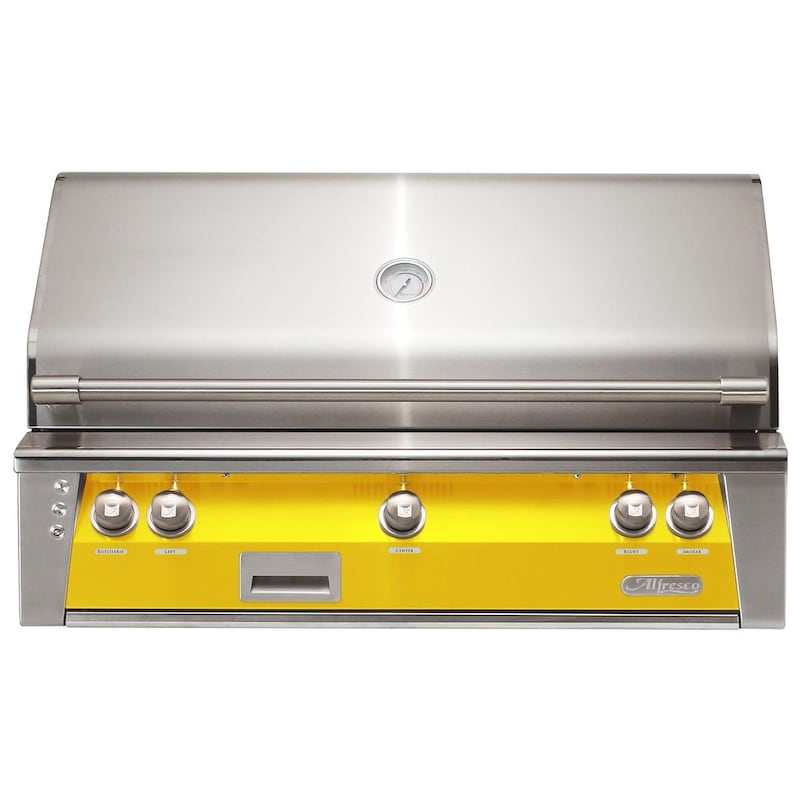

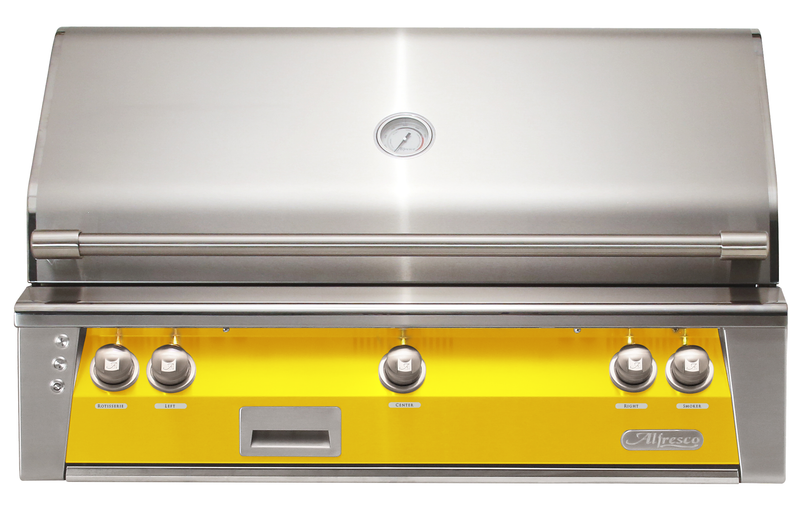

This listing is the factory natural gas model, ALXE-42-NG-S1023. The Traffic Yellow Gloss front fascia adds color while the canopy remains stainless steel. Match the fuel type to your planned gas supply before ordering.
What’s included
Grill head, integrated rotisserie, dedicated smoker system, work lights and warming rack. The outdoor island, insulating jacket and other accessories are separate unless specifically listed.
Specifications
| Model | ALXE-42-NG-S1023 |
|---|---|
| Configuration | Built-In |
| Finish | Traffic Yellow Gloss front fascia with stainless steel canopy |
| Fuel type | Natural Gas |
| Conventional main burners | 3 |
| Infrared Sear Zone | Not included |
| Actual grilling area | 770 sq. in. |
| Side burners | Not included |
| Cutout, W × D × H | 40.5 × 23 × 10.25 in. (noncombustible enclosure) |
Plan your installation
For noncombustible construction, the opening measures 40.5 inches wide × 23 inches deep × 10.25 inches high. Follow the linked model drawing for notches, setbacks and connection details. Combustible construction requires the appropriate insulating jacket and different opening dimensions.
Manuals & drawings
Contact us to confirm availability, delivery timing and compatible accessories.
Specifications
| Model | ALXE-42-NG-S1023 |
|---|---|
| Configuration | Built-In |
| Finish | Traffic Yellow Gloss front fascia with stainless steel canopy |
| Fuel type | Natural Gas |
| Conventional main burners | 3 |
| Infrared Sear Zone | Not included |
| Actual grilling area | 770 sq. in. |
| Side burners | Not included |
| Cutout, W × D × H | 40.5 × 23 × 10.25 in. (noncombustible enclosure) |
Manufacturer Documents
Official documents from Alfresco. These are the drawings to check before you frame the opening — they are the manufacturer's current revision, hosted on their own site.
Documents are published by the manufacturer and can be revised without notice. If anything in them conflicts with what you see here, the manufacturer's document is the one that governs the install.
