Fire Magic Echelon Diamond E540d Drop-In Gas Grill
Overview

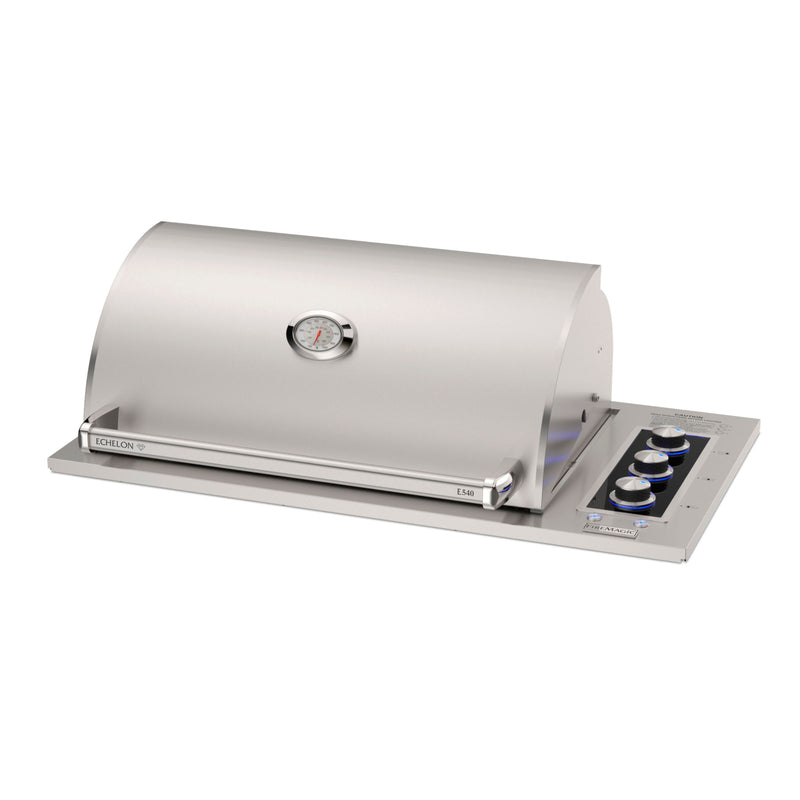

Create a clean countertop installation with controls positioned at the right side of the grill. The Echelon Diamond E540d combines a drop-in body with interior lighting and an analog thermometer for an outdoor kitchen planned around its specific opening.
Made for your outdoor kitchen
- Stainless steel tubular burners supply the primary cooking heat.

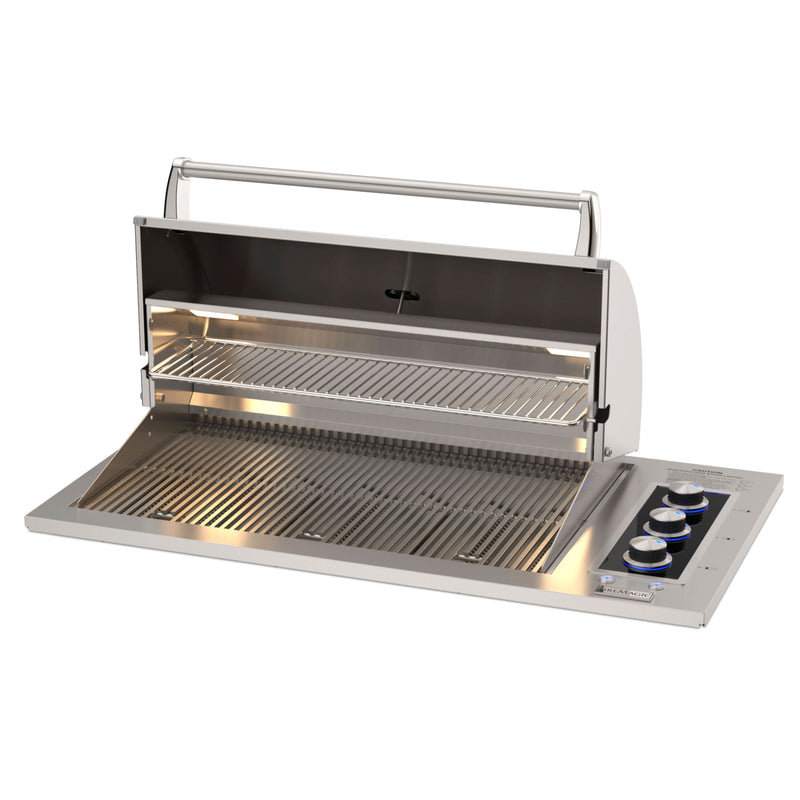

- Halogen interior lights illuminate the cooking area.
- A hood-mounted analog thermometer provides an at-a-glance temperature reading.
- The rotisserie kit is available separately.
What’s included
E540d drop-in grill. Rotisserie, island construction and any required insulating liner are separate.
Choose your gas type
Choose the factory gas configuration that matches your supply. Have your installer confirm natural gas or propane and the connection requirements before ordering.
Specifications
| Model | E540d |
|---|---|
| Configuration | Drop-In |
| Fuel | Natural Gas / Propane |
| Cooking Surface | 30″w x 18″d (540 sq. in.) |
| Main burners | 54,000 BTU’s |
| Countertop opening, W × D | 41.75 in. × 20.75 in. |
| Clearance below countertop | 16 in. from countertop to bottom of unit |
Plan your installation
Plan a 41.75-inch-wide × 20.75-inch-deep countertop opening and 16 inches of clearance below the countertop to the bottom of the unit. That clearance is not a conventional front cutout height. These dimensions apply to the grill head in a noncombustible enclosure; liner 3271-50 has a separate opening. Use Table 1 in the current manual before building.
Manuals & drawings
Questions before you order
Where can I find the installation requirements?
Open the installation and owner’s manual linked above. Confirm the exact model, opening and utility requirements with your installer before construction.
Specifications
| Model | E540d |
|---|---|
| Configuration | Drop-In |
| Fuel | Natural Gas / Propane |
| Cooking Surface | 30″w x 18″d (540 sq. in.) |
| Main burners | 54,000 BTU’s |
| Cutout opening, W × D — noncombustible enclosure | 41.75 × 20.75 in. |
| Clearance below countertop | 16 in. from countertop to bottom of unit |
| Insulating liner | 3271-50 required for combustible enclosures; cutout dimensions differ with liner |
| Electrical supply | 120 V AC / 15 A minimum / GFCI outlet; follow installation manual |
Manufacturer Documents
Official documents from Fire Magic. These are the drawings to check before you frame the opening — they are the manufacturer's current revision, hosted on their own site.
Documents are published by the manufacturer and can be revised without notice. If anything in them conflicts with what you see here, the manufacturer's document is the one that governs the install.
