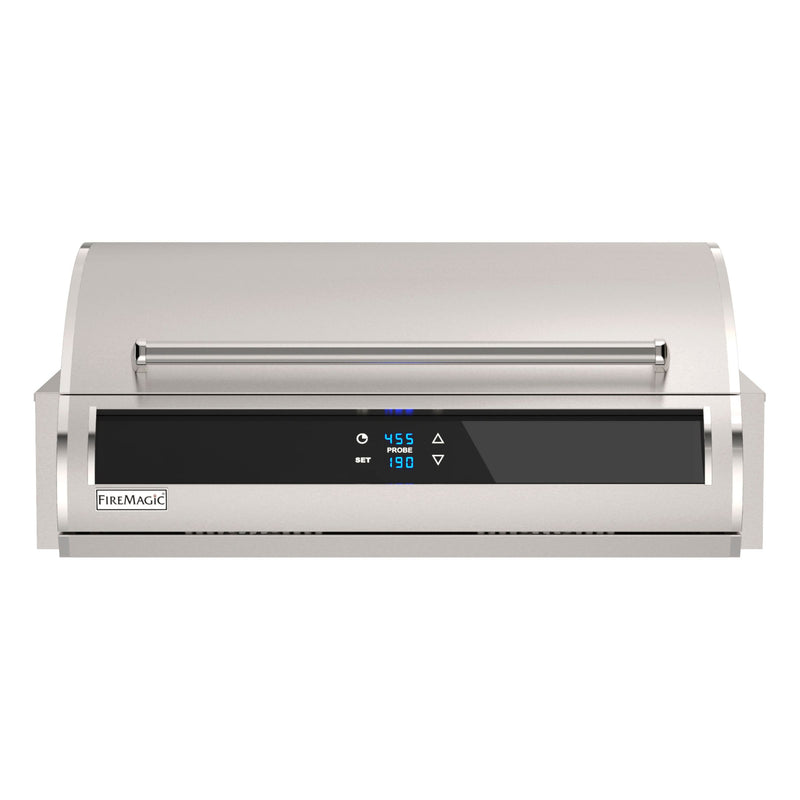

Fire Magic EL500i Built-In Electric Grill — Single-Zone Digital Control
Overview
Build an outdoor cooking space around electric grilling. This EL500 built-in model gives you single-zone digital temperature control.
Made for your outdoor kitchen
- 304 stainless steel construction and Diamond Sear cooking grids.
- A removable warming rack adds flexibility when serving a meal.
- An accessible drip tray makes cleanup easier.
- A digital thermometer and meat probe help you follow cooking temperature.
What’s included
Electric grill. Island construction, electrical work and any optional insulating liner are separate.
Plan the electrical connection
This grill requires a 240 V supply and a minimum 30 A circuit. Have a qualified electrician confirm the requirements in the manual for your installation.
Specifications
| Model | EL500i |
|---|---|
| Configuration | Built-In |
| Fuel | Electric |
| Temperature control | Single-Zone Digital |
| Cooking Area | 30” x 16” (480 sq. in.) |
| Electrical supply | 240 V AC; 30 A minimum circuit. Follow the exact installation manual. |
| Cutout, W × D × H | 33 in. × 17.5 in. × 7.25 in. |
Plan your installation
For a noncombustible enclosure, allow an opening 33 inches wide × 17.5 inches deep × 7.25 inches high. These are opening dimensions, not the overall grill size. A compatible insulating liner, where required, needs its own larger opening. Confirm ventilation, overhangs, clearances and connections in the installation manual before construction.
Manuals & drawings
Questions before you order
Where can I find the installation requirements?
Open the installation and owner’s manual linked above. Confirm the exact model, opening and utility requirements with your installer before construction.
Specifications
| Model | EL500i |
|---|---|
| Configuration | Built-In |
| Fuel | Electric |
| Temperature control | Single-Zone Digital |
| Cooking Area | 30” x 16” (480 sq. in.) |
| Electrical supply | 240 V AC; 30 A minimum circuit. Follow the exact installation manual. |
| Cutout, W × D × H | 33 in. × 17.5 in. × 7.25 in. |
Manufacturer Documents
Official documents from Fire Magic. These are the drawings to check before you frame the opening — they are the manufacturer's current revision, hosted on their own site.
Documents are published by the manufacturer and can be revised without notice. If anything in them conflicts with what you see here, the manufacturer's document is the one that governs the install.
Shipping & Returns
Contact us to confirm availability and delivery timing.
Review our shipping policy and return policy before ordering.
Warranty
Warranty coverage and terms vary by manufacturer and component. Refer to the manufacturer documents for this model.
Contact us with your order number if you need help with a warranty claim.
