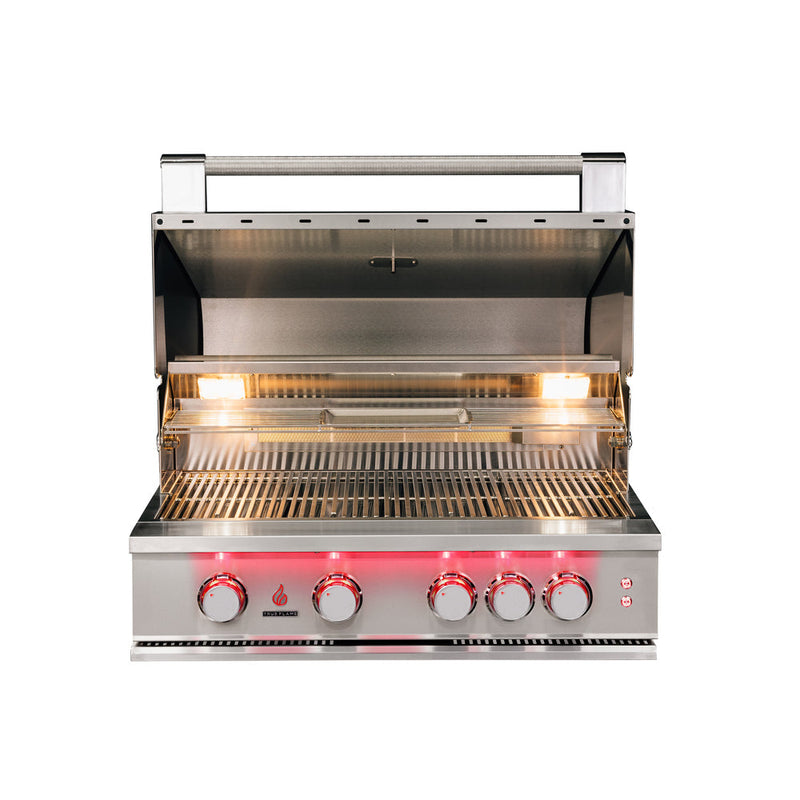

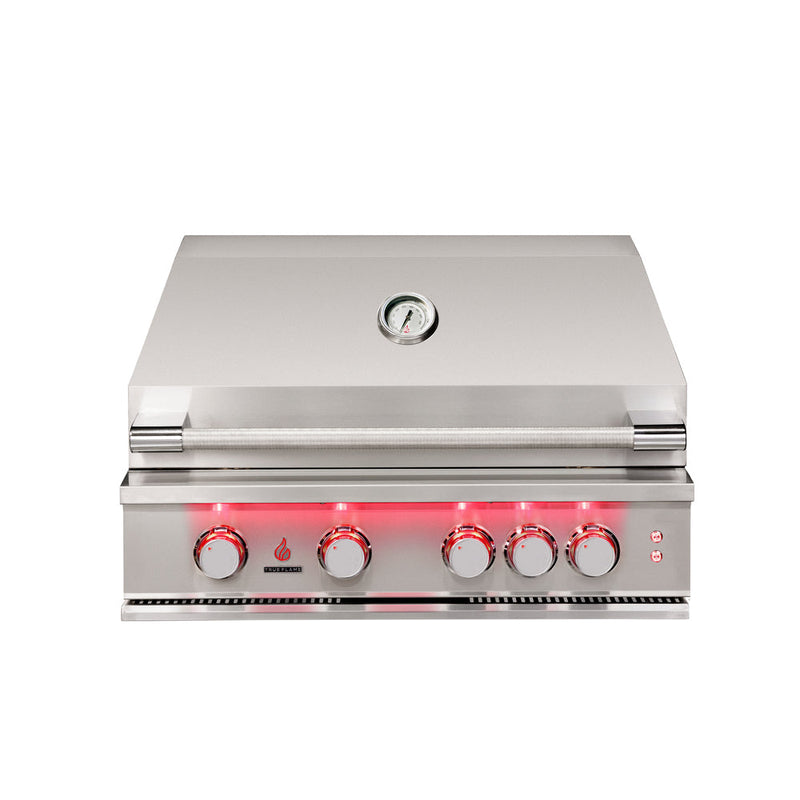

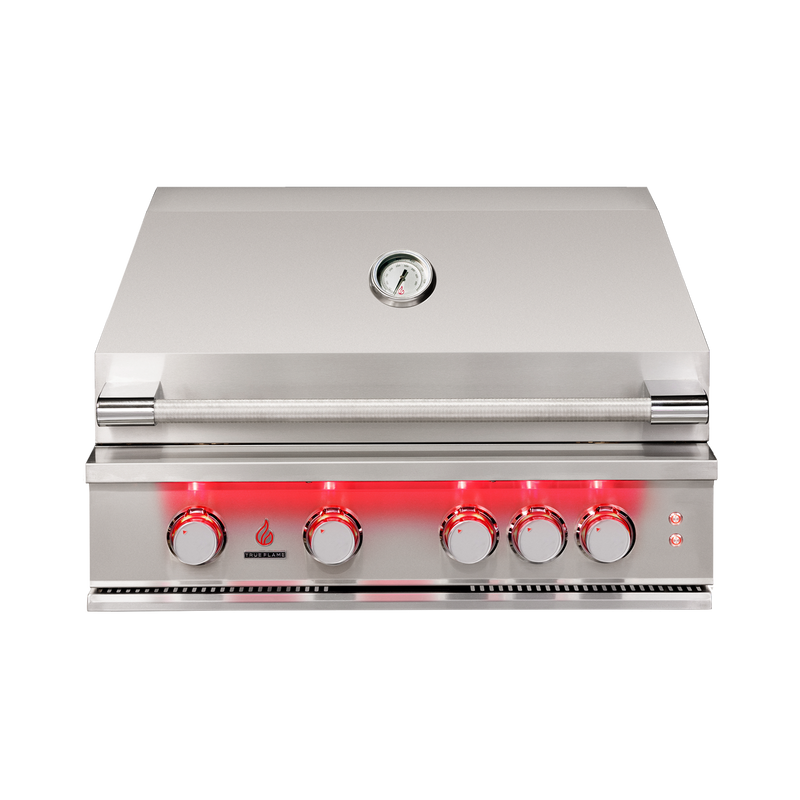

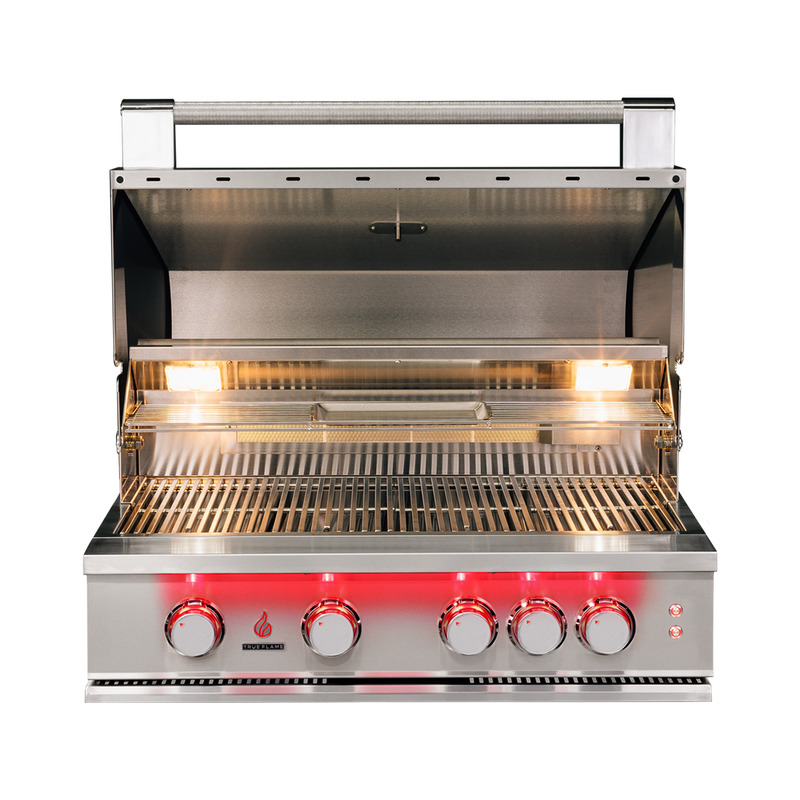

TrueFlame 32-Inch Built-In Gas Grill
Overview

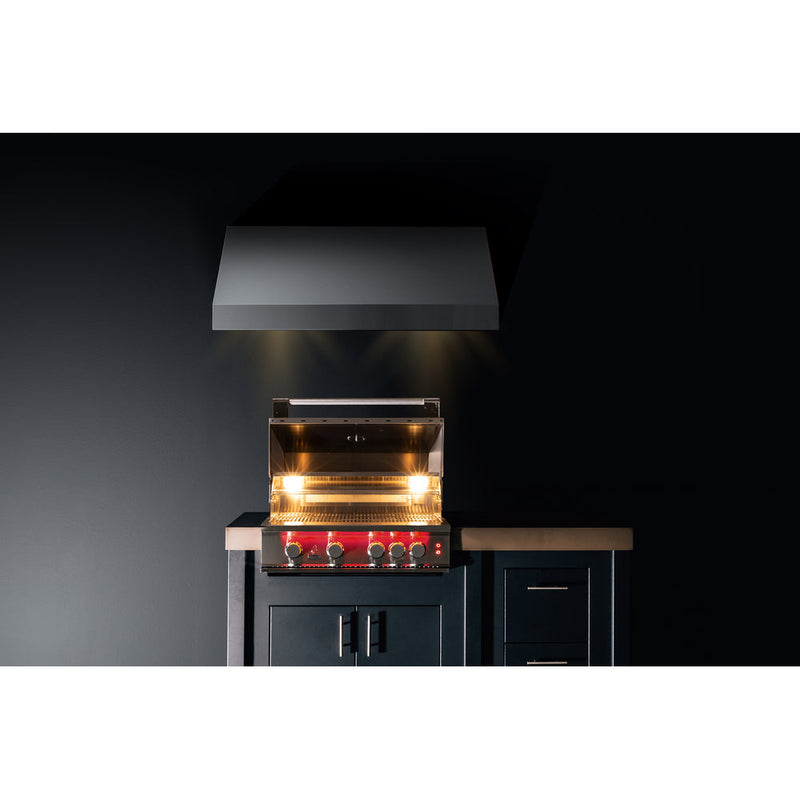

Build an outdoor kitchen around the 32-inch TrueFlame grill. Its stainless steel construction and square cooking grates give you a practical setup for everything from quick weeknight meals to a gathering with friends.
Designed for outdoor cooking

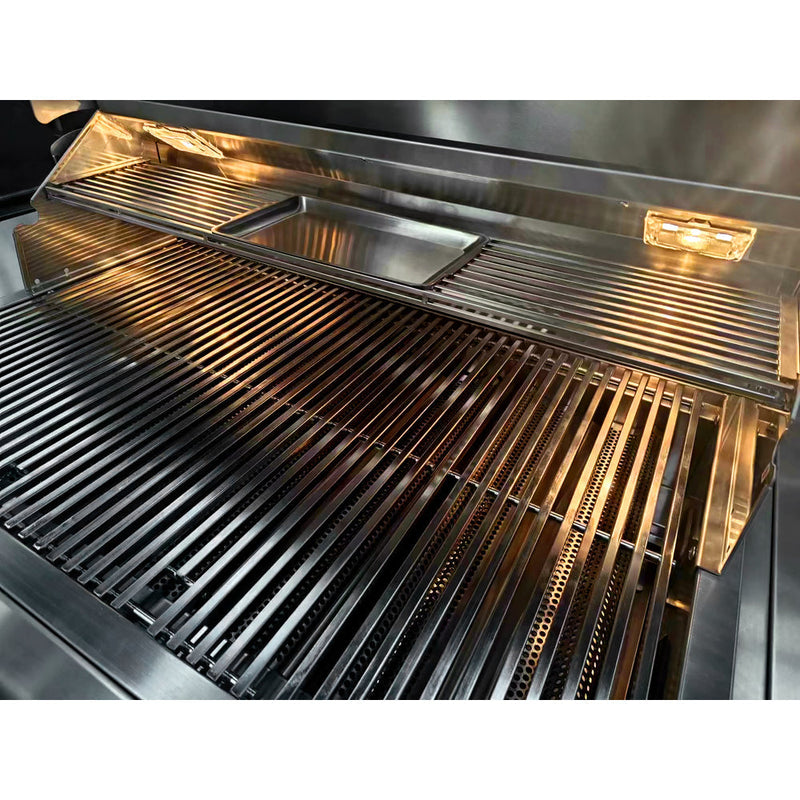

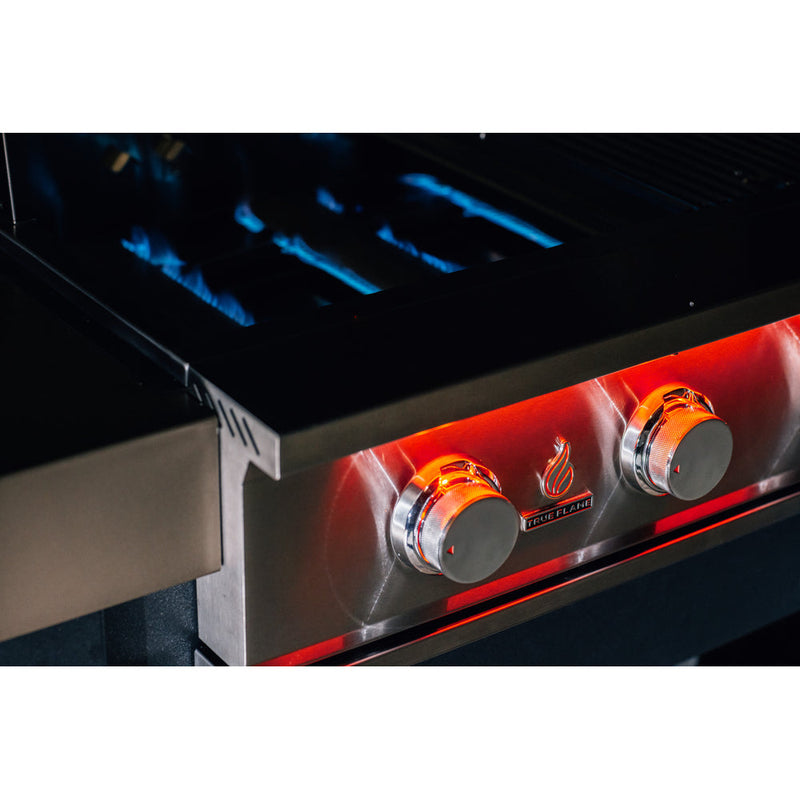

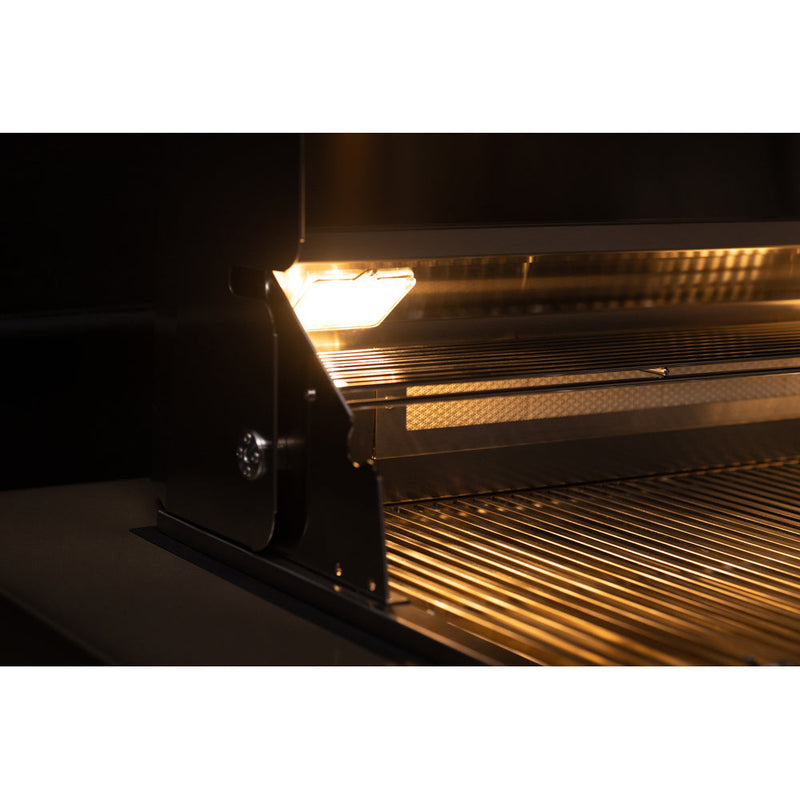

Interior halogen lights illuminate your food. Exterior LED lighting highlights the controls, and heat-zone separators help you manage different foods.
Choose your setup
Select the factory natural-gas or propane configuration that matches your supply. This listing includes the built-in grill head. The island, cart, protective cover, insulating liner and optional accessories are sold separately.
Specifications
| Model | TF32 |
|---|---|
| Installation | Built-in grill head; cart sold separately |
| Fuel | Factory natural gas or propane |
| Finish | 304 stainless steel |
| Cutout, W × D × H | 30.75 × 20.75 × 8.25 inches |
| Main burners | 4 cast stainless steel burners |
| Heat per main burner | 14,000 BTU |
| Manufacturer cooking surface | 716 sq. in. |
| Rear infrared burner | 10,000 BTU; rotisserie kit sold separately |
Plan your installation
The appliance opening is 30.75 × 20.75 × 8.25 inches (width × depth × height) for a noncombustible enclosure. This is the cutout, not the overall appliance size. A required insulating liner uses a different opening. Confirm all clearances, ventilation and utility connections in the manufacturer documents before construction.
Manuals & drawings
Contact us to confirm availability and delivery timing.
Specifications
| Model | TF32 |
|---|---|
| Installation | Built-in grill head; cart sold separately |
| Fuel | Factory natural gas or propane |
| Finish | 304 stainless steel |
| Cutout, W × D × H | 30.75 × 20.75 × 8.25 inches |
| Main burners | 4 cast stainless steel burners |
| Heat per main burner | 14,000 BTU |
| Manufacturer cooking surface | 716 sq. in. |
| Rear infrared burner | 10,000 BTU; rotisserie kit sold separately |
Manufacturer Documents
Official documents from TrueFlame. These are the drawings to check before you frame the opening — they are the manufacturer's current revision, hosted on their own site.
Documents are published by the manufacturer and can be revised without notice. If anything in them conflicts with what you see here, the manufacturer's document is the one that governs the install.
